Hike All-in-One
POS: A Complete, Wire-Free Solution
In this article:
Overview &
Key Benefits
What's Included
Technical
Specifications
Setting Up Your
Device
Connecting
Peripherals
Overview & Key Benefits

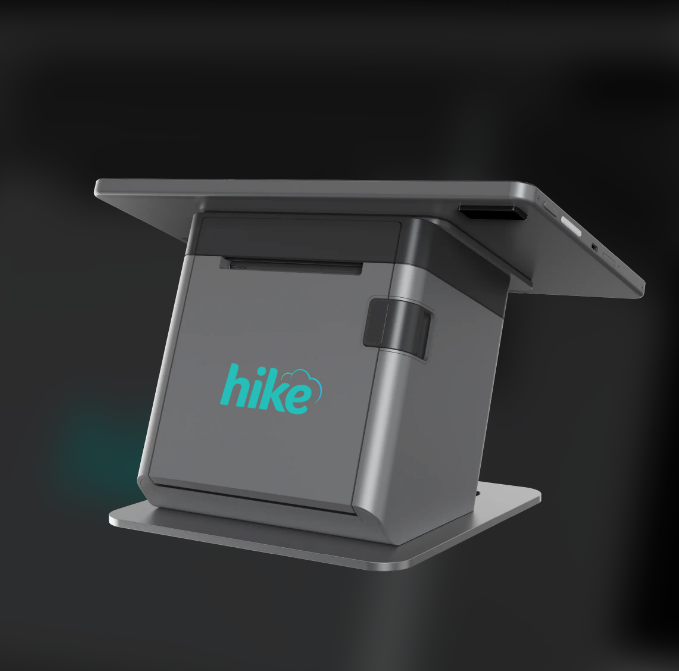

The Hike All-in-One Hardware is a fully integrated point-of-sale solution designed for modern retail and hospitality businesses. It combines a powerful Android tablet, high-speed thermal printer, NFC-enabled payment terminal, and magnetic docking system into a single, sleek device—simplifying operations and saving counter space.
The Hike All-in-One Hardware is a fully integrated point-of-sale solution designed for modern retail and hospitality businesses. It combines a powerful Android tablet, high-speed thermal printer, NFC-enabled payment terminal, and magnetic docking system into a single, sleek device—simplifying operations and saving counter space.
The ultimate tablet-based point-of-sale is designed
to eliminate clutter and simplify your operations right out of the box. This
powerful device combines a high-performance Android tablet with a high-speed
integrated receipt printer, creating a sleek, all-in-one station that keeps
your countertop clean and professional.
Key Benefits:
Truly
Plug-and-Play: Hike
POS is pre-installed and optimised for the device. Simply log in and start
processing sales immediately.
Built-in High-Speed
Receipt Printer: No more external wires or boxes. The magnetic dock
includes a fast 58mm or 80mm thermal printer for instant receipts.
Wireless &
Clutter-Free: The innovative magnetic docking system means no messy power
or data cables to connect. Just place the tablet on the dock to charge and
connect to peripherals automatically.
Connect Everything
You Need: Easily connect a cash drawer, barcode scanner, and other
essential peripherals directly to the dock's ports.
Built for All-Day
Operations: With a massive 8000mAh battery and a powerful 8-core
processor, it handles your busiest days with ease.
What's in the Box?
The Hike All-in-One
POS system is modular, allowing you to select the setup that best suits your
business.
Core Components:
Hike POS

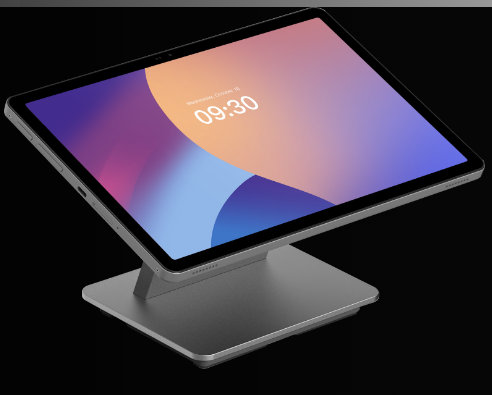

Tablet: The heart of the system, featuring a vibrant 10.95-inch
touchscreen.
Printer Dock:
58mm High-Speed
Printer Dock: Ideal for standard receipt printing.
80mm High-Speed
Printer Dock: With an automatic cutter, perfect for itemized receipts or
kitchen orders.
Power
Adapters for the tablet and dock.
Basic Dock: A
simple, non-printer docking station for secondary stations.
Technical Specifications
|
Category
|
Details
|
|
Processor
|
Octa-core (Dual-core 2.2GHz) for fast and complex transactions
|
|
Memory
|
8GB RAM + 128GB ROM
|
|
Operating System
|
Android 13 with pre-installed Hike POS software
|
|
Display
|
10.95-inch, 1920 x 1200 Multi-touch Capacitive Panel
|
|
Battery
|
8000mAh, all-day battery life
|
|
Connectivity
|
Wi-Fi 5, Bluetooth 5.2, 4G LTE (Optional), NFC
|
|
Built-in Printer
|
58mm or 80mm thermal printer dock
|
|
Peripheral Ports on Dock
|
USB-A ports (for cash drawer, scanner), RJ12 (cash drawer), RJ45
(Ethernet)
|
|
Certifications
|
Google GMS, FCC, CE
|
Setting Up Your Device
Getting started is
straightforward:
Unbox and Place the
Dock: Position the Printer Dock on your counter in a convenient location.
Connect the
Power: Plug the power adapter into the Printer Dock and into a wall
outlet.
Connect
Peripherals: Connect your cash drawer and barcode scanner to the available
ports on the dock.
Dock the
Tablet: Simply place the Hike POS tablet onto the magnetic dock. It will
snap into place, connecting to power and peripherals automatically.
Power
On: Press the power button on the tablet. The per-installed Hike POS app
will launch, and you can log in to your account.
Your system is now
ready to process sales and print receipts.
Connecting Peripherals
The Printer Dock is
the hub for all your essential equipment.
Cash
Drawer: Connect to the RJ12 port on the dock. It will be
triggered automatically when a transaction is completed.
Barcode
Scanner: Plug your USB scanner into one of the USB-A ports on
the dock. It should be recognized instantly.
Networking: For
a more stable connection, use the RJ45 Ethernet port on the dock.
