How to configure Hike with Afterpay Barcode/QR

How to configure Hike with Afterpay Barcode/QR

The Afterpay integration is supported on PC, Mac, iPad and Android tablets and is required for Afterpay's barcode/QR solution. This integration is supported in Australia and New Zealand. The instructions below is suitable for PC and Mac users.

Important note: Hike's integration with Afterpay is for the in-store barcode/QR code solution. If you want to use the Afterpay Card solution, there's no need to integrate Afterpay with Hike. Please contact the Afterpay support team or your merchant acquirer (payment processor) for further details about how to set up the Afterpay Card solution.

If you are using the Hike app on an iPad or Android tablet, please finish the configuration on a computer as instructed below, and navigate to Settings >>> General settings to click on "Data Sync". Then, you will be able to use Hike on your iPad or Android tablet.

Prerequisite: in order to configure the Afterpay barcode/QR code solution, you will need to get your Afterpay account ready including merchant ID and secret.

Please note: If you are an existing Afterpay customer, the Afterpay team needs to switch your Afterpay solution from the standalone one to the integrated one. Please contact us on chat, or email to the Afterpay team directly. The Afterpay team can be reached by emailing to merchantservices@afterpay.com.au. Please include your Afterpay account and your request, which is "to migrate my Afterpay from the Standalone solution to the Hike integrated solution", in the email so that the team can handle the request accordingly. You will get the credentials for Afterpay integration from the Afterpay team after they finish the migration work.

Configure with Afterpay

  1. Login into Hike store using your store URL (i.e. storename.hikeup.com)

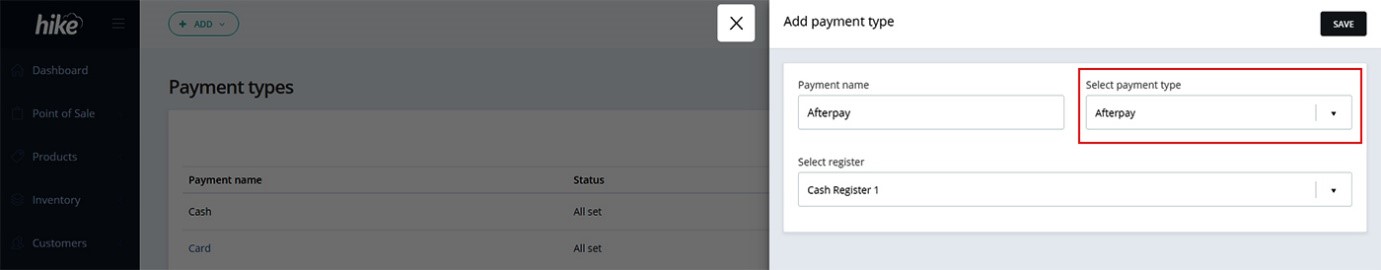

  2. Go to Store setup ->Payment types -> Add new payment type -> enter the payment name -> select Afterpay as payment type -> click “Save"


  3. Once above payment type created, you will see it listed in the payment type page in Hike click on the red text "configuration required" -> it will direct you to below page:

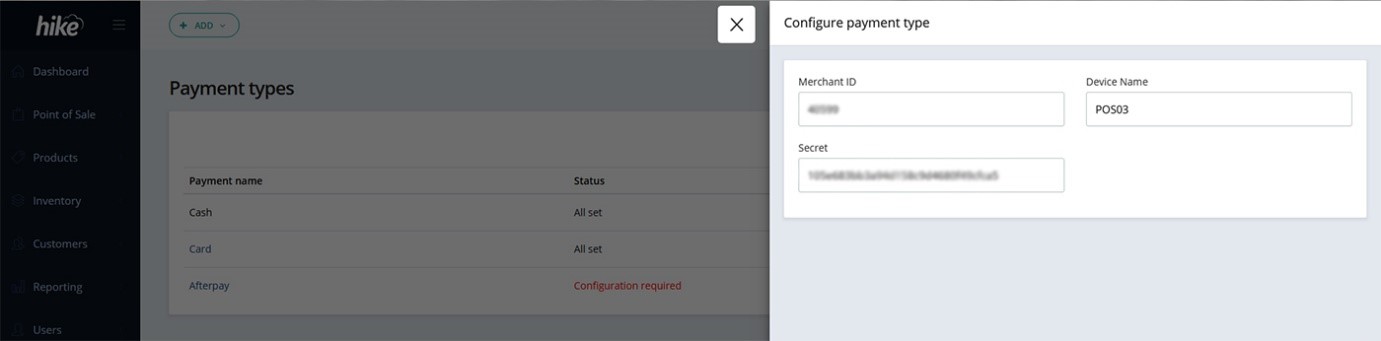

  4. Enter your merchant ID, Device Name and Secret into the fields. You will get those details from Afterpay. Once entered, click on "Pair" button on top-right of your screen. If it configured successfully, it will show blue text "Configured" like below and you are ready to go:)

Process payment with Afterpay

  1. Once Afterpay has been configured go Process sell page from “Point of Sale -> Process sale”. Add item(s) into cart and click on the pay button it will open slider.

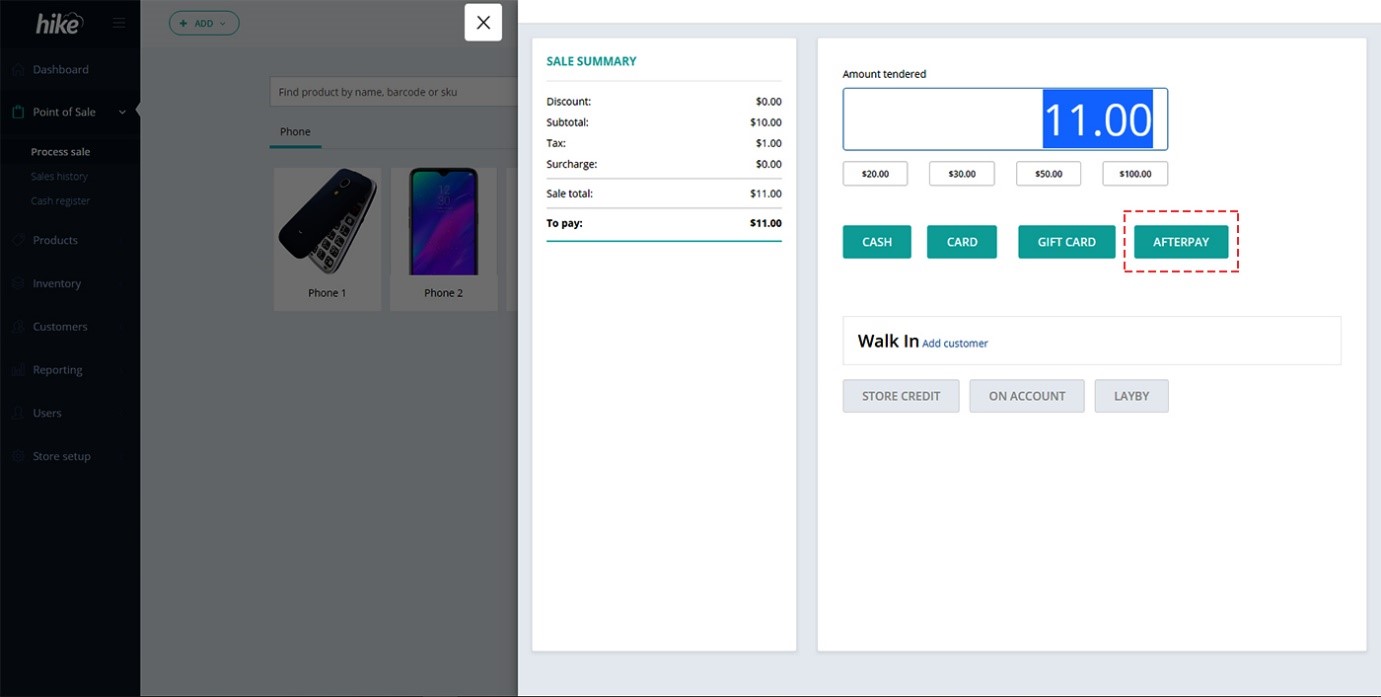

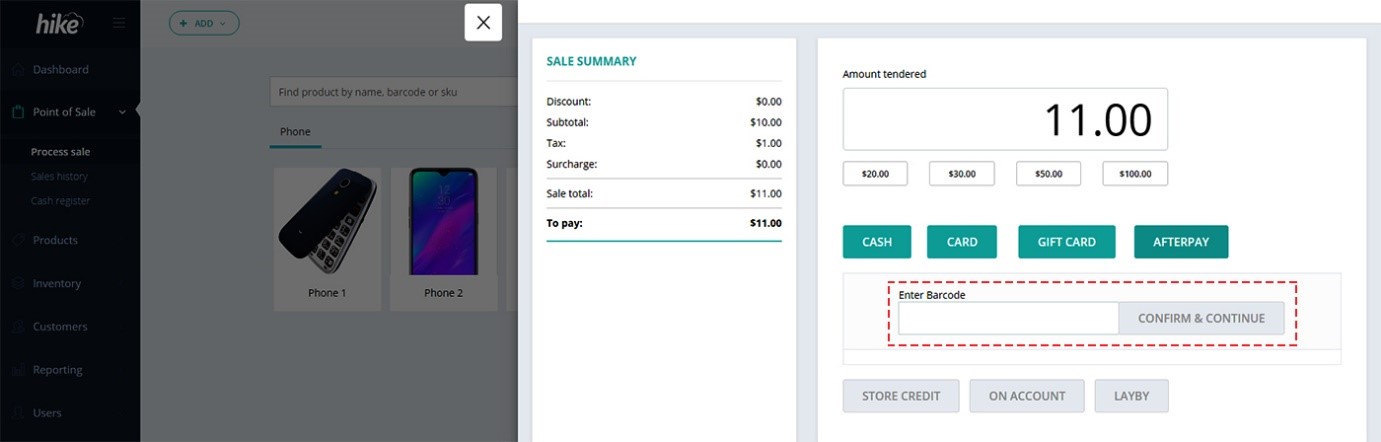

  2. As per above screen Afterpay payment option will display at payment screen. Once click on “Afterpay” (or whatever name you have given to your Afterpay) button will ask for a barcode as below

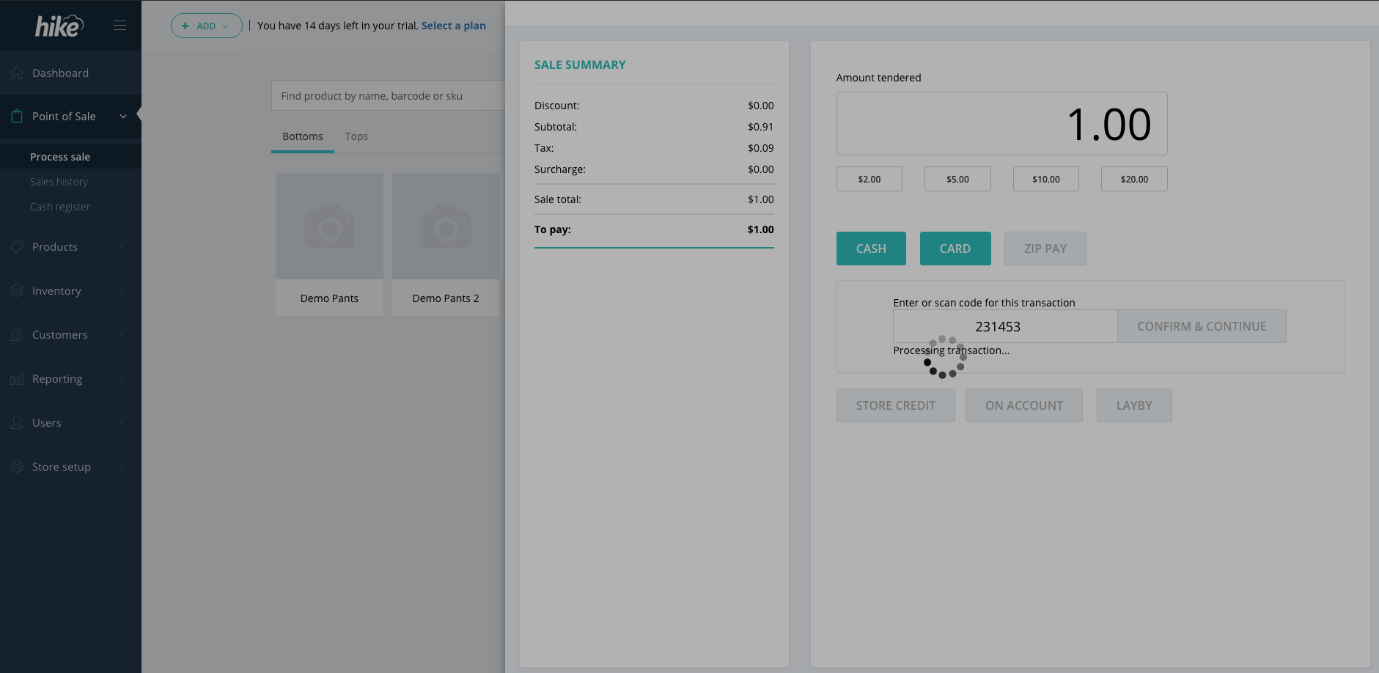

  3. Please enter or scan code for this transaction, once you enter code and click on “CONFIRM & CONTINUE” button will make Afterpay purchase request.

On Purchase success response POS will print receipt number as below


Process refund with Afterpay

You can only refund to Afterpay on the same invoice with exact amount paid via Afterpay. For example, the total for a sale was $100, $2 paid via Afterpay and $98 paid by cash.

When you refund via Afterpay it will only allow to refund less than or equal to $2.



To process refund please go to “Point of Sale -> Sale history”. Click on “Refund” link to make refund request, which will redirect you to process sell page to refund the sale Click on “Refund” will open slider to process with it.
